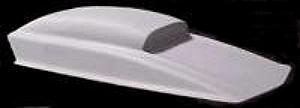

AC-952
NEW!
AC-952 New
Super-cowl scoop!
The Best of Both.. Front open and Rear open! Features
"open back" for Forcing air into rear. Aero-scoop allows air to
enter front, greatly improving performance.
The 24" width measurement is an approximation of the inside clearance and
does not
include the flange. The sides taper and the inside measurement gets smaller
as it
tapers up.
Inside measurement at midpoint is 24-1/2"
Longer Version available AC962, 62" long. 24"
wide, 9" high
|
|

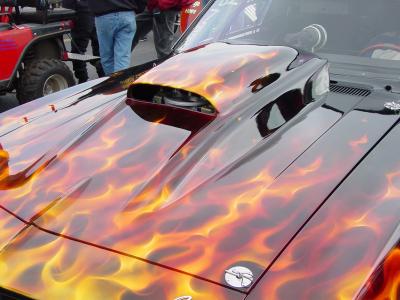

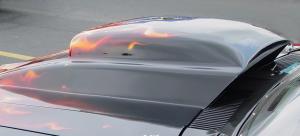

1969 Camaro (Hood: CA102T, Scoop: AC952)
| |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
AC-952 is
also
open in "Rear"
Cowl Induction Style |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
 |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|

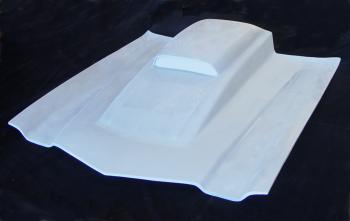

AC-952 on
a 1970-81 Camaro Hood
(also
open in "Rear"
Cowl Induction Style) |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AC-539 New Super-cowl mini!
The Best of Both.. Front open and Rear open!
Features:
"open back" for Forcing air into rear.
Aero-scoop allows air to
enter front,
greatly improving performance.
Bottom has mounting flange for a bolt on application
39" long,16-1/4 wide
7" high,
Front opening 3-1/4 x 11-1/2
Rear opening 2 x 16
|
Bottom View of AC-539,
inside mounting flange
AC539
|
 SC-150
Straight cut mounting allows base to be mounted to a flanged
aluminum carb plate. Most popular applications are for direct mounting to
carbs (both for dragster and boat applications). All hand-laid in one
piece from high quality fiber-glass materials.
Base outside measurements are
20-1/8" long X 12-1/8" wide.
Base does not have an internal mounting flange.
Inside dimensions are approx 12" x 20", might be smaller due to fiberglass
thickness. These inside measurements are approx. the size of the carb tray,
with bent up flanges, you will need to mount this scoop.
|
 DS-125
New Aero-Drag scoop. Features 21 1/2" overall height.
Designed to be mounted
to carburetor air pan tray.
Base is 19" x 11 1/2". Opening is 45 square inches.
Rounded inlet provides for maximum air intake.
Aerodynamic shape reduces drag.
Contoured
rear interior helps to maintain air flow. |

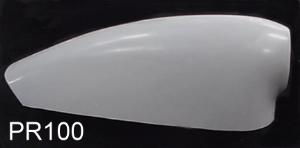

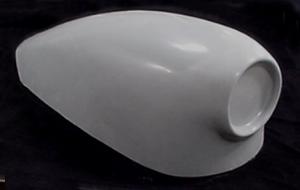

PR-100
New Pro-Stock "Round" opening .
Front round opening 7-1/2" diameter.
42-1/2" Long
18" Wide
14-1/2" High
Smooth gray gel coat finish. 100% hand laid fiberglass. Consisting of
gel-coat, fiberglass matting, fiberglass 'cloth' and high strength polyester
resin. Bottom is open for molding to your hood. We offer mold-in of this
scoop to almost any of our fiberglass hoods. We can install (mold-in) this
scoop to just about any height you need. We simply cut the base to the
desired size before molding in. Then we fiberglass the scoop into the hood
from the bottom and finish the top side. Front to back position is also a
custom operation to your specific needs.
Please call for more info on our custom work.
|
|
PR-100 .. Black |

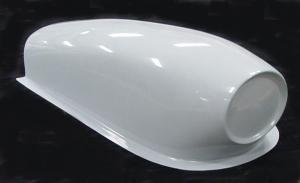

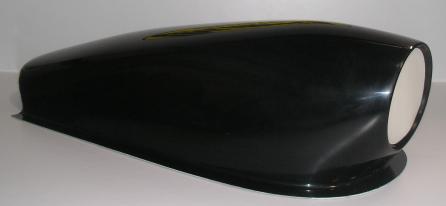

PR-200
New Pro-Stock "Round" opening.
Front round opening 8-3/4" diameter.
Open in back
48" Long
17" Wide
12" High
Outside mounting flange.
Smooth gray gel coat finish. 100% hand laid fiberglass. Consisting of
gel-coat, fiberglass matting, fiberglass 'cloth' and high strength polyester
resin. Bottom is open for molding to your hood. We offer mold-in of this
scoop to almost any of our fiberglass hoods. We can install (mold-in) this
scoop to just about any height you need. We simply cut the base to the
desired size before molding in. Then we fiberglass the scoop into the hood
from the bottom and finish the top side. Front to back position is also a
custom operation to your specific needs.
Please call for more info on our custom work |
PR-200B .. Black
Ready to bolt to the carbs. Then cut hood to fit
around the scoop. Scoop stays on the carbs when removing the hood.
New Pro-Stock "Round" opening.
Front round opening 8-3/4" diameter.
Open in back
48" Long
17" Wide
12" High
Outside mounting flange. |

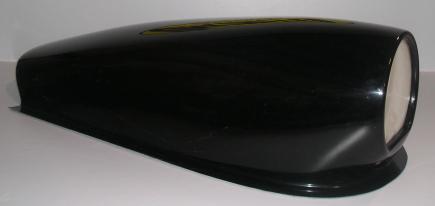

PR-300B
in Black
New Pro-Stock "Flat/Round" opening.
Open in back
Front opening 8-3/4" diameter.
47" Long
17-3/8" Wide at base
12-1/2" High
Outside flange.
Ready to bolt to the carbs. Then cut hood to fit
around the scoop. Scoop stays on the carbs when removing the hood. |
|

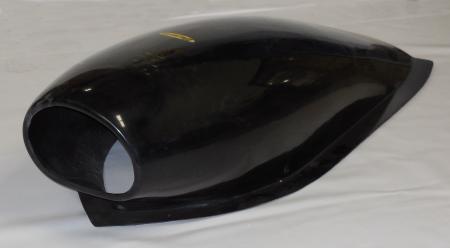

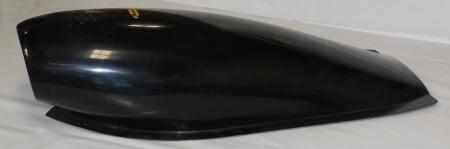

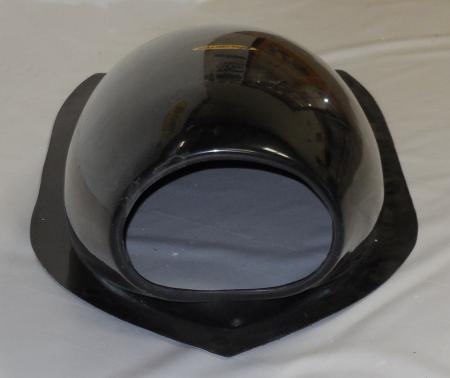

PR-400B in black
| |
|
|
|
|
|
|
|
|
|
|
|
| |
 |
|
"BLACK" Pro-Stock
"Round/Oblong
Opening" . 45" Long,
15" Wide (less flange), 19-1/2 wide with flange, 11 High.
"Oblong Opening: 8-3/8" wide x 6" high (ups
ok)
Opening in bottom: 39-1/2" long X 15" wide.
No "Top Seam" / "Mold Line" to finish off. |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
 |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Aero - Bubble |
|
|
|
|
|
|
|
|
Carbon Fiber Aero-Bubble
12" high x 62" x23" wide. Smooth, black gel coat finish! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 PR-77
The Aero-Top 2-piece snorkel is an inexpensive way to update your car. Overall height is
7". Consists of a base (2-1/4") and the Aero-Top (4-3/4"). Internal flange
between base and top allows use of air pan kit and provides a strong bolting flange to
hold the top section to the base. The top piece is #AT475. |
| |
  PR-79
With a base measurement of 4-1/4" and the top at 4-3/4" the total height is
9". This 2- piece scoop has the same internal flange for carb sealing but allows
extra clearance for high rise carburetion. |
  PR-79A
Same as PR79, but has angled base. Base has external flange for bolting or riveting to
hood, or this scoop can be bonded to the hood with fiberglass resin. Scoop top is separate
and has bottom flange for mounting to scoop base. |
  SC-200
We currently produce a large volume of these aero-scoops. All hand-laid in one piece. We
have specially designed molds that allow us to laminate this item in one piece without
`assembly' after it is molded. The bottom flange is straight cut to allow trimming this
flange off to make the scoop the desired height. Overall height can be cut to 8" and
still keep the aero design. Rear of scoop is closed off and baffle is optional.
Aero-scoops allow for maximum air intake as well as low air drag. Opening 3-7/8" x
15". |
  SC-204
This scoop is supplied as an 11-1/2" tall scoop, but can be easily cut down to the
proper height before molding into the hood. Minimum recommended height is 7".
Straight cut base allows for proper attachment to any fiberglass hood. Mounting
instructions are available upon request. Front opening size 3-1/2" hi x 14"
wide. |
  SC-210
Features: "Bottom Internal Flange"
New version of the famous aero-dynamic scoop. Back contour is completely redesigned for
non-windshield length applications. Rear of scoop is 'rounded' for a smooth look. Opening
is 14" x 3-5/8" and features smooth gel coat
surface. Features 1-1/2"
'internal' bottom flange for bolting to carb plate or mounting to hood. As with all
Unlimited's aero scoops, this one also has smooth top surface without 'mold-line'. Our 'no
mold line' system will reduce paint prep time considerably, since there is no top surface
mold line that has to be re-worked before painting. 8" high by 32" long. |

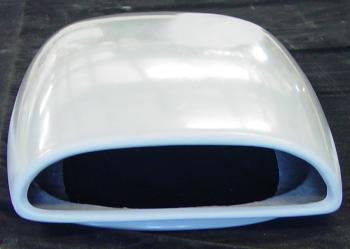

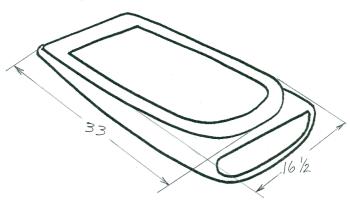

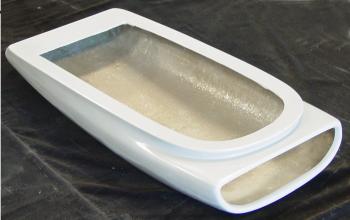

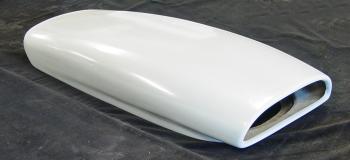

SC-266
Newest version of our "Bolt on " Aero scoops. Features a
widened width to 17-1/2". Height is 6". Front opening 3-1/2" X 15".
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|

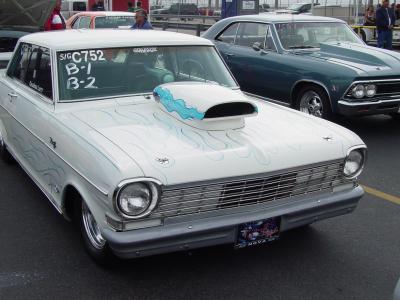

1962 Nova Hood:CH200
Scoop:SC210
Bumper:CH221
|
|
 |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
SC210 Scoop SHORT
AERO-DYNAMIC SCOOP 33" LONG 8-1/2" HIGH |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

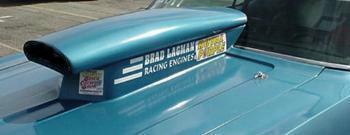

  AT-44
This long aero-top will replace your existing 'square' style windshield snorkel top. It
will bolt directly to your old base. The bottom of this scoop has a full flange with hole
cut. Rounded air intake maximizes air flow while reducing drag. This scoop can also be
mounted directly to a flat hood. UP22.com
the web's giant-giant site for quality fiberglass. Customers agree, fit,
price, quality all come together at UP22.com. Please visit UP22.com
frequently to see updates, specials and new items. Or visit our factory in
Hesperia CA. You can pick up items (call ahead) or just browse our huge
factory. You can request to see our lay-up shop and see how our products are
made! New scoops are being added to our product line. Check with UP22.com
AT44 on PR16 Base |
  AT-475
Unlimited's exclusive new design, Aero-Top. We designed this scoop from a basic concept.
It offers an inexpensive way to modernize your old style scoop without buying a new hood
and scoop. Underside has complete mounting flange. This item is fully hand laminated in
one piece and is 4-3/4" tall. As a replacement for the old style square top, this
Aero-Top will increase the overall height of your snorkel by 2-1/2 inches. Can also be
mounted directly to a flat hood. Opening size 2-5/8" hi x 13-1/4" wide. |
 AT-475
bottom view
Bottom view of AT475 Aero-top. Bottom has full flange for mounting directly to standard
flat steel hood or flat fiberglass hood. Oval hole in bottom can be cut larger if
needed. |
  PR-69
Windshield snorkel with Aero-top. This snorkel features full fiberglass construction. Top
and bottom sections feature internal flanges for carb sealing. Base has 5 degree angle and
overall height is 9" |
  SC-274
New bolt on Aero-dynamic scoop. This scoop features low profile (7" overall height).
Has internal mounting flange for easy mounting to steel or fiberglass hood. Inside style
mounting flange will not allow mounting bolts to show. This is similar in all dimensions
to the SC204 & SC284 but is only 7" tall. Bottom mounting flange has slight curve
to match the contour of the hood. |
SC-284
New bolt on Aero-dynamic scoop. This scoop features low profile (8" overall height).
Has internal mounting flange for easy mounting to steel or fiberglass hood. Inside style
mounting flange will not allow mounting bolts to show. This is similar in all dimensions
to the SC204 & SC284 but is only 8" tall. Bottom mounting flange has slight curve
to match the contour of the hood. |

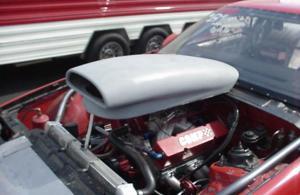

Internal flange or the SC-284 allows attachment
directly to the top of a carburetor plate.SC-284 |
 SC-284 bottom view
Bottom view of internal flange of SC284. This flange is made as an integral part of the
scoop. Bottom flange is 1-1/2" wide. Front portion of flange can be cut away if
necessary to allow 'matching' of any body line or ridge in the center of the hood. This
matching can easily be done with a jig saw or small hand saw, then filed or sanded to fit.
Bottom flange has a slight curve (front to back) to match the hood contour. |
 SC-294
Hidden mounting flange allows for easy attachment to any fiberglass or steel hood. All of
Unlimited's scoops with internal mounting flange can also be mounted to a
flat carburetor 'plate' and hood can be cut out to clear the scoop thus
allowing removal of the hood without removing the scoop. This scoop is also
similar in size to the SC284 and SC204 but has internal mounting flange and
is 9" overall height. |
 SC-509
9 inch high Aero-Dynamic scoop with outside mounting flange. Flange is 2"
wide, but can be cut down to desired width. Overall length of mounting flange is 37"
and approx. width of mounting flange is 19-1/2". This scoop is used for mounting to a
flat carburetor plate. Then a hole is cut into the hood to clear the scoop. Hood can then
be removed without removing the scoop, as the scoop stays attached to the carburetor
plate. 40-1/2 long (overall length, not including flange). 15-1/2 wide (not including
flange). Height
at very back is 4". Height just inside rear mounting flange is 5-1/2". |
  SC-713
Boat scoop. Dimensions are 13 inches wide, 23-1/2 inches long and 7 inches high.
Front opening is 11-1/2 x 3-3/8. Bottom is straight cut, no flange. Bottom
is oval shaped and is 21-1/4 long X 13 wide.
|
SC-714
Boat scoop. Same as SC713, but has bottom flange for mounting.
Dimensions are 13 inches wide, 23-1/2 inches long and 7 inches high.
Front opening is 11-1/2 x 3-3/8. Bottom flange is 1-1/2" wide.
Bottom
is oval shaped and is 21-1/4 long X 13 wide. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 |
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
  ET-112
Boat scoop. Features bottom flange for easy mounting to a flat sheet-metal carburetor
plate. Opening is 4 x 12. Base is 12 x 20 long. Overall length is 21-1/2.
Height is 11-1/4. For boats and dragsters.
Bottom
view of ET-112 showing bottom mounting flange.
New!...New!
UP22.com the web's giant-giant
site for quality fiberglass. Customers agree, fit, price, quality all come
together at UP22.com. Please visit UP22.com frequently to see updates,
specials and new items. Or visit our factory in Hesperia CA. You can pick
up items (call ahead) or just browse our huge factory. You can request to
see our lay-up shop and see how our products are made! New scoops are
being added to our product line. Check with UP22.com
|
Click here for more
scoops...
 Scoop
page #1 has cowl induction styles
 Scoop page #3 has misc. scoops |
