T-101 |
 |
|
T-101 |
 |
T-106
Radiator shell 1919-1923 Model T bucket. For replacement of original metal
shell or for 'cover' over open radiator to meet dragster rules. Made from
durable hand laid fiberglass and can be painted to match car. Bottom edge
has flange for attaching to frame. |

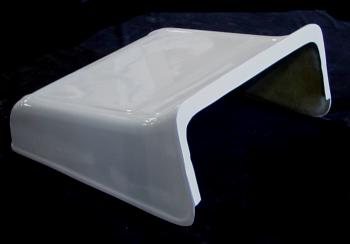

 T-104
For 1919-1923 Model T bucket
This turtle deck has front mounting flanges for easy attachment to body and
is a one piece unit that does not open and close. Original body line of
trunk opening is retained for the stock look or cut to open. |
|
T-104 |
T-104 |
 T-107
For 1919-1923 Model T bucket
This is a street type radiator shell that is extra wide for a larger radiator. Dimensions
are 24 inches tall and 20 inches wide with a depth of 6 inches. This shell is made of
triple thick hand laid fiberglass. |
 T-102
For 1919-1923 Model T bucket
Medium size pick-up bed. Has open back for mounting tailgate. Tailgate must be
purchased separately. Full mounting flange for proper attachment to body. Features hand
laid construction for durability and strength.
Inside width: 39"
Mounting area width: 39"
Outside width at upper flange: 45" |

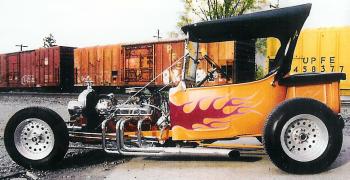

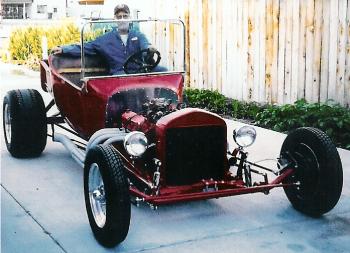

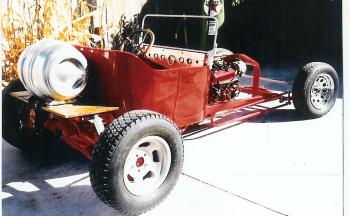

 T-101
1919-1923 Model T bucket
Can be used on the Street or strip. Made with 3 layers of hand laid fiberglass,
this T-body is channeled to slip over drag racing chassis rails or it can go on top of
rails for street use. Doors are integrated and are non-functional. Dash is flat for
mounting any configuration of gauges. Firewall is flat for cutting to desired
configuration.
Firewall width is 24-1/4".
The over all length is 47-1/2".
Width
at bottom is 33 inches.
Bottom "opening" length is 37-1/4 inches.
Inside drivers width 42 inches. |
 T-103
For 1919-1923 Model T bucket
This is the tailgate for the T102 bed; it can be mounted permanently to the bed or it can
be easily hinged. Ford imprint is raised and clearly visible.
 |
 TA-301
65" overall length
45" wide
32-1/2" high.
Firewall to wheel well
39-1/2".
Height from bottom (at frame rail) to wheel well 25". NHRA legal for
Comp and Super Comp classes. Body and tail section have wheel wells opened up for 33"
tires.
Actual wheel well size is 38".
Firewall is 20" high, 24-1/2" wide.
Upper opening for driver is 19 inches wide (approx.)
Width (drivers area) 41-1/2" (approx.)
Width of front section at bottom is 24" |
 TA-301
(Rear View)
Rear view of TA-301, T-Altered Body. TA-304 is designed to be attached to the rear of this
unit. Made of medium weight hand laid fiberglass, it will withstand heavy use in drag
racing. |
TA-301
Dragster....
This AA/FA Features Unlimited's T-Altered Body. Owner driver Mike Sullivan. Sponsored by
Consolidated Packaging.
This new car was built for match racing, as there is still no true fuel altered
class for today's hard charging 5.50 second 270 mph AA/FA.
This dragster features a 5,000 hp nitro (90% nitro / 10% alcohol) engine. Runs 5.50
seconds in the 1/4.
 |
|
UP22.com the web's giant-giant site for quality fiberglass.
Customers agree, fit, price, quality all come together at UP22.com. Please
visit UP22.com frequently to see updates, specials and new items. Or visit
our factory in Hesperia CA. You can pick up items (call ahead) or just
browse our huge factory. You can request to see our lay-up shop and see how
our products are made! New scoops are being added to our product line. Check
with UP22.com |
|
 TA-304
Rear section of TA-301. Attaches to TA-301 by bolting or "glassing". Smooth gel
coat finish.Front section width
18-1/2"
Overall length 36"
Length of front section 19"
Length of rear section 14" |
 TA-303
T- nose (20" long) 20-3/4 wide x 8-3/4 high. Made of hand laid fiberglass. |
 T-801
1919-1923 Model T bucket
Built in contoured dash for that stock look. Doors do not open. Firewall has 'tunnel cut'.
Made from double thick hand-laid fiberglass construction. Smooth grey gel
coat surface for
easy painting. Width at bottom is 30 inches. Flange is on bottom for mounting on top of
rails, or can be mounted over rails if desired.
Firewall width is 27-3/4 inches.
Width
between notches in front is 26-3/4 (notch is 3-1/2 above base flange). Notches can be
widened to 27-3/4 at firewall.
Width between notches in rear is 30 inches and notch is
9-1/4 above base flange.
Length at notches is 46-3/4 inches.
Firewall to rear is 48" (at top of firewall).
Widest point in rear (46-3/4") is at 9" from the back and at top edge. |
 TA-305
Universal front nose for Junior dragster. 19" long x 10" wide x 5-1/2 high.
|
 TA-302
T- nose (30" long)
30" long x 21-1/4 wide x 9" high. Can be dzus'ed on or bolted to frame. Made of
medium weight hand laid fiberglass. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
T-801 measurements |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
T-101, T-102, T-103,
T104 & T-106 Sizes
|
 T-807
This fiber glass tunnel gives extra clearance for
transmission bell housing; also helps lower body on frame rails.
Size is 18" wide 8" high &
21"long. |
 T-802
For 1919-1923 Model T bucket
Model-T pickup bed and tailgate combo. Tailgate is built in. Overall length is 16"
long. Can be bolted or bonded to body. Features full mounting flange for easy assembly. |
 T-803
This is a replica of the famous Auburn style dash board. Made
of hand-laid fiberglass to help support your gauges. "Gauges not included".
This dash fits the T-227 1927 T roadster body.
36-1/2" Long x 6" High
UP22.com the web's giant-giant site
for quality fiberglass. Customers agree, fit, price, quality all come
together at UP22.com. Please visit UP22.com frequently to see updates,
specials and new items. Or visit our factory in Hesperia CA. You can pick up
items (call ahead) or just browse our huge factory. You can request to see
our lay-up shop and see how our products are made! New scoops are being
added to our product line. Check with UP22.com |
 T-806
This shell combines the radiator grill shell and the head
lights in one smooth piece. Mounts to the front of the radiator with the molded in flange.
This grill shell comes already notched for the steering shaft, but no fill cap hole is
provided, this area is left blank, but can be cut open for a filler cap if desired.
Front opening is 15-3/4" wide and 13-3/4" high.
This shell will accommodate a 20" wide by 19" high radiator. (5" maximum
thickness)
The bottom is relieved to accept a taller (20" or more) radiator if desired.
 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |

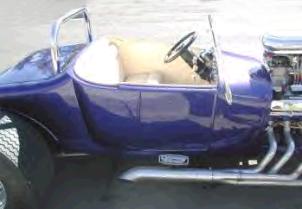

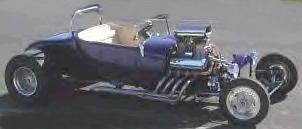

T-227
Now you can build a 1926-1927 T Roadster at an affordable price. Made of durable
hand-laid
triple layer fiberglass, this body will out last steel because it will
not rust. Doors are integrated and are non-functional. No floor is included and must be fabricated.
For dash, order part number T-803 (auburn dash). For additional charge,
we can 'glass the dash in.
Model T227 is for street roadster and has
extra reinforcement to all large flat areas for increased thickness, rigidity and
strength.
Approx. dimensions:
23-1/2" high x 90" long.
Width at very front by firewall..29-1/8 inches
(28-3/4 inches, inside at front for frame rail width)
Width max. at seat area..47 inches
Width at rear..42-1/4 inches
Fits on frame rails: 28-1/2"
(original Ford "T" frame rails were 28-1/4" outside to outside) |
|
Cockpit area dimensions:
Length: 38-1/2"
Width at front: 36-1/2"
Width at middle: 42-1/2"
Width at rear: 44-1/2"
Distance of cockpit from firewall: 17" |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
For 1926
Model T Roadster and 1927 Model T Roadster |
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
 |
|
| |
 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
This auburn dash (part #
T-803) is made to
fit the T-227 body. |
|
|
|
|
|
|
|
|
| |

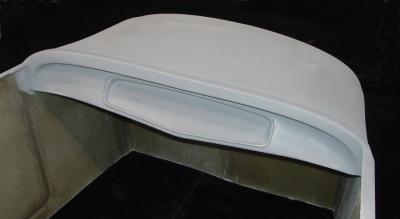

T-227D |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 |
|
|
|
|
|
|
|
|
|
| |
|
T-227D Same as T-227 but has Auburn dash built in. |
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
